最近负责开发一个监控项目,需要把统计结果通过图表的形式展现出来.这里使用到了jquery的flot插件,github项目地址:https://github.com/flot/flot.这回,就记录一下,开发过程中遇上的一些问题,以及解决方案.

最近负责开发一个监控项目,需要把统计结果通过图表的形式展现出来。这里使用到了jquery的flot插件,github项目地址:https://github.com/flot/flot。这回,就记录一下,开发过程中遇上的一些问题,以及解决方案。

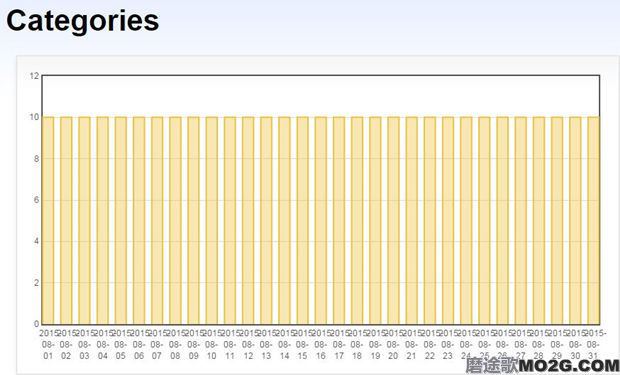

1)categories柱形图,当显示的数据太多,会导致x轴的标识信息重叠,如下图所示:

flot柱形图

为了解决X轴标签的重叠问题,我在网上找了好多资料,有网友使用CSS来控制标签旋转,避免重叠。CSS样式类似代码:

.flot-x-axis. tickLabel {
	-o-transform:rotate(40deg);
	-moz-transform:rotate(40deg);
	-webkit-transform:rotate(40deg);
	filter: progid:DXImageTransform.Microsoft.BasicImage(rotation=3);
}

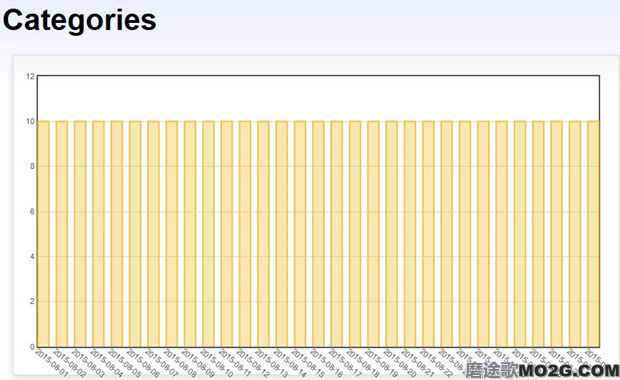

flot柱形效果图    效果图

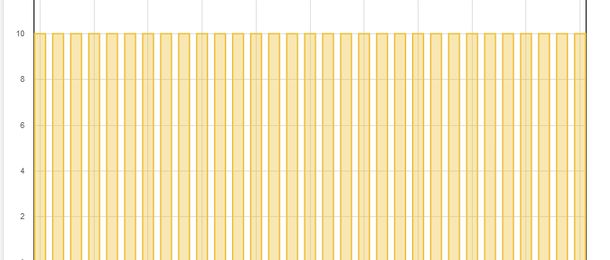

然而,这不是我想要的效果,X轴的信息过于密集,不是很美观,可不可以精简一下X轴,不显示那么多刻度呢?例如5~10天显示一个刻度,类似下图:


这样既清爽,又解决了重叠的问题了。

接下来就给大家讲解flot提供的ticks参数,可以自定义显示的标签。

ticks对应的二维数组结构解析:

ticks: [
    [
        对应轴上标签的索引,从0开始计算,
        对应标签要显示的内容
    ]
]

示例如下:

xaxis: {
	mode: "categories",
	ticks: [
	    [0,'2015-08-01'],[5,'2015-08-06'],[10,'2015-08-11'],[15,'2015-08-16'],
	    [20,'2015-08-21'],[25,'2015-08-26'],[30,'2015-08-31']
	]
}

这里,我们可以改进一下,使用函数来返回数据

xaxis: {
	mode: "categories",
	ticks: x_label(flot_data,9)
}

x_label函数的实现代码如下:

function x_label(data,max) {
	var label = [],
		end = data.length - 1,
		index = 0;
	$.each(data,function(i,k) {
		if( Math.floor(i * max / end)  == index ) {
			label.push([i,k[0]]);
			index++;
		}
	});
	return label;
}

完整的代码如下,可以直接运行看效果。

<!DOCTYPE html>
<html>
<head>
	<meta charset="UTF-8" />
	<title>Flot Examples: Categories</title>
	<link href="http://www.flotcharts.org/flot/examples/examples.css" rel="stylesheet" type="text/css">
	<!--[if lte IE 8]><script src="http://www.flotcharts.org/excanvas.min.js"></script><![endif]-->
	<script src="http://www.flotcharts.org/flot/jquery.js"></script>
	<script src="http://www.flotcharts.org/flot/jquery.flot.js"></script>
	<script src="http://www.flotcharts.org/flot/jquery.flot.categories.js"></script>
	<script>
	$(function() {
		var flot_data = [["2015-08-01", 10],["2015-08-02", 10],["2015-08-03", 10],["2015-08-04", 10],["2015-08-05", 10],["2015-08-06", 10],["2015-08-07", 10],
			["2015-08-08", 10],["2015-08-09", 10],["2015-08-10", 10],["2015-08-11", 10],["2015-08-12", 10],["2015-08-13", 10],["2015-08-14", 10],["2015-08-15", 10],
			["2015-08-16", 10],["2015-08-17", 10],["2015-08-18", 10],["2015-08-19", 10],["2015-08-20", 10],["2015-08-21", 10],["2015-08-22", 10],["2015-08-23", 10],
			["2015-08-24", 10],["2015-08-25", 10],["2015-08-26", 10],["2015-08-27", 10],["2015-08-28", 10],["2015-08-29", 10],["2015-08-30", 10],["2015-08-31", 10],
		];

		$.plot("#placeholder", [ flot_data ], {
			series: {
				bars: {
					show: true,
					barWidth: 0.6,
					align: "center"
				}
			},
			xaxis: {
				mode: "categories",
				ticks: x_label(flot_data,10)
			}
		});
	});

	function x_label(data,max) {
		var label = [],
			end = data.length - 1,
			index = 0;
		$.each(data,function(i,k) {
			if( Math.floor(i * max / end)  == index ) {
				label.push([i,k[0]]);
				index++;
			}
		});
		return label;
	}
	</script>
</head>
<body>
	<div id="header">
		<h2>Categories</h2>
	</div>
	<div class="demo-container">
		<div id="placeholder" class="demo-placeholder"></div>
	</div>
</body>
</html>
